[转]如何从0写一个服务网关？
1. 0 引言
1-1-1. 什么是网关？为什么需要使用网关？
如图所示，在不使用网关的情况下，我们的服务是直接暴露给服务调用方。当调用方增多，势必需要添加定制化访问权限、校验等逻辑。当添加API网关后，再第三方调用端和服务提供方之间就创建了一面墙，这面墙直接与调用方通信进行权限控制。
本文所实现的网关源码抄袭了—Oh,不对，是借鉴。借鉴了Zuul网关的源码，提炼出其核心思路，实现了一套简单的网关源码，博主将其改名为Eatuul。
1-1-2. 题外话
本文是业内能搜到的第一篇自己动手实现网关的文章。博主写的手把手系列的文章，目的是在以最简单的方式，揭露出中间件的核心原理，让读者能够迅速了解实现的核心。需要说明的是，这不是源码分析系列的文章，因此写出来的代码，省去了一些复杂的内容，毕竟大家能理解到该中间件的核心原理即可。如果想看源码分析系列的，请关注博主，后期会将spring、spring boot、dubbo、mybatis等开源框架一一揭示。
2. 1 正文
2-1-1. 设计思路

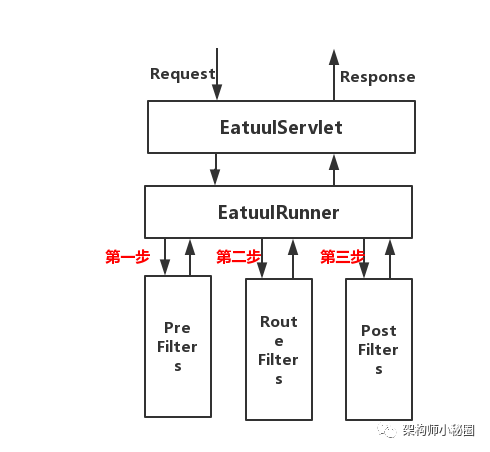

先大致说一下，就是定义一个Servlet接收请求。然后经过preFilter(封装请求参数),routeFilter(转发请求)，postFilter(输出内容)。三个过滤器之间，共享request、response以及其他的一些全局变量。如下图所示
和真正的Zuul的区别?
主要区别有如下几点
(1)Zuul中在异常处理模块，有一个ErrorFilter来处理，博主在实现的时候偷懒了，略去。

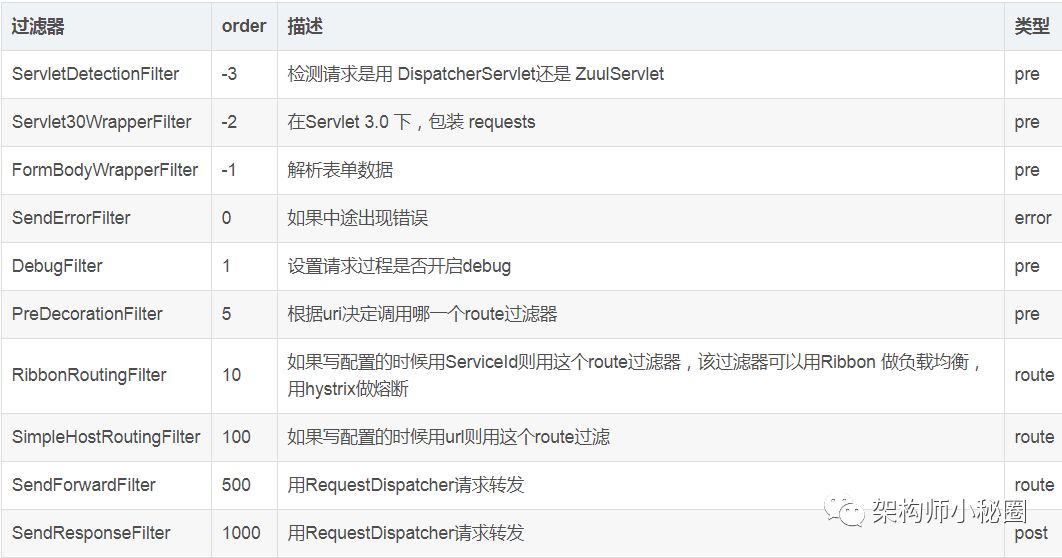

(2)Zuul中PreFilters,RoutingFilters,PostFilters默认都实现了一组，具体如下表所示
博主总不可能每一个都给你们实现一遍吧。所以偷懒了，每种只实现一个。但是调用顺序还是不变，按照PreFilters->RoutingFilters->PostFilters的顺序调用
(3)在routeFilters确实有转发请求的Filter,然而博主偷天换日了，改用RestTemplate实现.
2-1-2. 代码结构

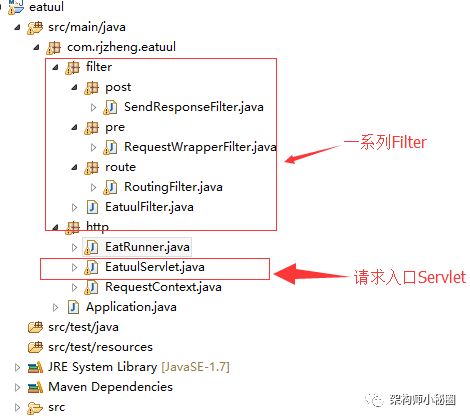

大家去spring官网上搭建一套springboot的项目，博主就不展示pom的代码了。直接将项目结构展示一下，如下图所示
EatuulServlet.java
这个是网关的入口，逻辑也十分简单，分为三步
(1)将request,response放入threadlocal中
(2)执行三组过滤器
(3)清除threadlocal中的的环境变量
源码如下
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 |
package com.rjzheng.eatuul.http; import java.io.IOException; import javax.servlet.ServletException; import javax.servlet.annotation.WebServlet; import javax.servlet.http.HttpServlet; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; @WebServlet(name = "eatuul", urlPatterns = "/*") public class EatuulServlet extends HttpServlet { private EatRunner eatRunner = new EatRunner(); @Override public void service(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException { //将request，和response放入上下文对象中 eatRunner.init(req, resp); try { //执行前置过滤 eatRunner.preRoute(); //执行过滤 eatRunner.route(); //执行后置过滤 eatRunner.postRoute(); } catch (Throwable e) { RequestContext.getCurrentContext().getResponse() .sendError(HttpServletResponse.SC_NOT_FOUND, e.getMessage()); } finally { //清除变量 RequestContext.getCurrentContext().unset(); } } } |
EatuulRunner.java
这个是具体的执行器。需要说明一下，在Zuul中，ZuulRunner在获取具体有哪些过滤器的时候，有一个FileLoader可以动态读取配置加载。博主在实现我们自己的EatuulRunner时候，略去动态读取的过程，直接静态写死。
源码如下
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 |
package com.rjzheng.eatuul.http; import java.util.ArrayList; import java.util.List; import java.util.concurrent.ConcurrentHashMap; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import com.rjzheng.eatuul.filter.EatuulFilter; import com.rjzheng.eatuul.filter.post.SendResponseFilter; import com.rjzheng.eatuul.filter.pre.RequestWrapperFilter; import com.rjzheng.eatuul.filter.route.RoutingFilter; public class EatRunner { //静态写死过滤器 private ConcurrentHashMap<String, List<EatuulFilter>> hashFiltersByType = new ConcurrentHashMap<String, List<EatuulFilter>>(){{ put("pre",new ArrayList<EatuulFilter>(){{ add(new RequestWrapperFilter()); }}); put("route",new ArrayList<EatuulFilter>(){{ add(new RoutingFilter()); }}); put("post",new ArrayList<EatuulFilter>(){{ add(new SendResponseFilter()); }}); }}; public void init(HttpServletRequest req, HttpServletResponse resp) { RequestContext ctx = RequestContext.getCurrentContext(); ctx.setRequest(req); ctx.setResponse(resp); } public void preRoute() throws Throwable { runFilters("pre"); } public void route() throws Throwable{ runFilters("route"); } public void postRoute() throws Throwable{ runFilters("post"); } public void runFilters(String sType) throws Throwable { List<EatuulFilter> list = this.hashFiltersByType.get(sType); if (list != null) { for (int i = 0; i < list.size(); i++) { EatuulFilter zuulFilter = list.get(i); zuulFilter.run(); } } } } |
EatuulFilter.java
接下来就是一系列Filter的代码了，先上父类EatuulFilter的源码
1 2 3 4 5 6 7 8 9 10 |
package com.rjzheng.eatuul.filter; public abstract class EatuulFilter { abstract public String filterType(); abstract public int filterOrder(); abstract public void run(); } |
RequestWrapperFilter.java
这个是PreFilter,前置执行过滤器，负责封装请求。步骤如下所示
(1)封装请求头
(2)封装请求体
(3)构造出RestTemplate能识别的RequestEntity
(4)将RequestEntity放入全局threadlocal之中
代码如下所示
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 |
package com.rjzheng.eatuul.filter.pre; import java.io.IOException; import java.io.InputStream; import java.net.URI; import java.net.URISyntaxException; import java.util.Collections; import java.util.List; import javax.servlet.http.HttpServletRequest; import org.springframework.http.HttpHeaders; import org.springframework.http.HttpMethod; import org.springframework.http.RequestEntity; import org.springframework.util.MultiValueMap; import org.springframework.util.StreamUtils; import com.rjzheng.eatuul.filter.EatuulFilter; import com.rjzheng.eatuul.http.RequestContext; public class RequestWrapperFilter extends EatuulFilter{ @Override public String filterType() { // TODO Auto-generated method stub return "pre"; } @Override public int filterOrder() { // TODO Auto-generated method stub return -1; } @Override public void run() { String rootURL = "http://localhost:9090"; RequestContext ctx =RequestContext.getCurrentContext(); HttpServletRequest servletRequest = ctx.getRequest(); String targetURL = rootURL + servletRequest.getRequestURI(); RequestEntity<byte[]> requestEntity = null; try { requestEntity = createRequestEntity(servletRequest, targetURL); } catch (Exception e) { e.printStackTrace(); } //4、将requestEntity放入全局threadlocal之中 ctx.setRequestEntity(requestEntity); } private RequestEntity createRequestEntity(HttpServletRequest request,String url) throws URISyntaxException, IOException { String method = request.getMethod(); HttpMethod httpMethod = HttpMethod.resolve(method); //1、封装请求头 MultiValueMap<String, String> headers =createRequestHeaders(request); //2、封装请求体 byte[] body = createRequestBody(request); //3、构造出RestTemplate能识别的RequestEntity RequestEntity requestEntity = new RequestEntity<byte[]>(body,headers,httpMethod, new URI(url)); return requestEntity; } private byte[] createRequestBody(HttpServletRequest request) throws IOException { InputStream inputStream = request.getInputStream(); return StreamUtils.copyToByteArray(inputStream); } private MultiValueMap<String, String> createRequestHeaders(HttpServletRequest request) { HttpHeaders headers = new HttpHeaders(); List<String> headerNames = Collections.list(request.getHeaderNames()); for(String headerName:headerNames) { List<String> headerValues = Collections.list(request.getHeaders(headerName)); for(String headerValue:headerValues) { headers.add(headerName, headerValue); } } return headers; } } |
RoutingFilter.java
这个是routeFilter,这里我偷懒了，直接做转发请求，并且将返回值ResponseEntity放入全局threadlocal中
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 |
package com.rjzheng.eatuul.filter.route; import org.springframework.http.RequestEntity; import org.springframework.http.ResponseEntity; import org.springframework.web.client.RestTemplate; import com.rjzheng.eatuul.filter.EatuulFilter; import com.rjzheng.eatuul.http.RequestContext; public class RoutingFilter extends EatuulFilter{ @Override public String filterType() { // TODO Auto-generated method stub return "route"; } @Override public int filterOrder() { // TODO Auto-generated method stub return 0; } @Override public void run(){ RequestContext ctx = RequestContext.getCurrentContext(); RequestEntity requestEntity = ctx.getRequestEntity(); RestTemplate restTemplate = new RestTemplate(); ResponseEntity responseEntity = restTemplate.exchange(requestEntity,byte[].class); ctx.setResponseEntity(responseEntity); } } |
SendResponseFilter.java
这个是postFilters,将ResponseEntity输出即可
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 |
package com.rjzheng.eatuul.filter.post; import java.util.List; import java.util.Map; import javax.servlet.ServletOutputStream; import javax.servlet.http.HttpServletResponse; import org.springframework.http.HttpHeaders; import org.springframework.http.ResponseEntity; import com.rjzheng.eatuul.filter.EatuulFilter; import com.rjzheng.eatuul.http.RequestContext; public class SendResponseFilter extends EatuulFilter{ @Override public String filterType() { return "post"; } @Override public int filterOrder() { return 1000; } @Override public void run() { try { addResponseHeaders(); writeResponse(); } catch (Exception e) { e.printStackTrace(); } } private void addResponseHeaders() { RequestContext ctx = RequestContext.getCurrentContext(); HttpServletResponse servletResponse = ctx.getResponse(); ResponseEntity responseEntity = ctx.getResponseEntity(); HttpHeaders httpHeaders = responseEntity.getHeaders(); for(Map.Entry<String, List<String>> entry:httpHeaders.entrySet()) { String headerName = entry.getKey(); List<String> headerValues = entry.getValue(); for(String headerValue:headerValues) { servletResponse.addHeader(headerName, headerValue); } } } private void writeResponse()throws Exception { RequestContext ctx = RequestContext.getCurrentContext(); HttpServletResponse servletResponse = ctx.getResponse(); if (servletResponse.getCharacterEncoding() == null) { // only set if not set servletResponse.setCharacterEncoding("UTF-8"); } ResponseEntity responseEntity = ctx.getResponseEntity(); if(responseEntity.hasBody()) { byte[] body = (byte[]) responseEntity.getBody(); ServletOutputStream outputStream = servletResponse.getOutputStream(); outputStream.write(body); outputStream.flush(); } } } |
RequestContext.java
最后是一直在说的全局threadlocal变量
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 |
package com.rjzheng.eatuul.http; import java.util.HashMap; import java.util.Map; import java.util.concurrent.ConcurrentHashMap; import javax.servlet.http.HttpServletRequest; import javax.servlet.http.HttpServletResponse; import org.springframework.http.RequestEntity; import org.springframework.http.ResponseEntity; public class RequestContext extends ConcurrentHashMap<String, Object> { protected static Class<? extends RequestContext> contextClass = RequestContext.class; protected static final ThreadLocal<? extends RequestContext> threadLocal = new ThreadLocal<RequestContext>() { @Override protected RequestContext initialValue() { try { return contextClass.newInstance(); } catch (Throwable e) { throw new RuntimeException(e); } } }; public static RequestContext getCurrentContext() { RequestContext context = threadLocal.get(); return context; } public HttpServletRequest getRequest() { return (HttpServletRequest) get("request"); } public void setRequest(HttpServletRequest request) { put("request", request); } public HttpServletResponse getResponse() { return (HttpServletResponse) get("response"); } public void setResponse(HttpServletResponse response) { set("response", response); } public void setRequestEntity(RequestEntity requestEntity){ set("requestEntity",requestEntity); } public RequestEntity getRequestEntity() { return (RequestEntity) get("requestEntity"); } public void setResponseEntity(ResponseEntity responseEntity){ set("responseEntity",responseEntity); } public ResponseEntity getResponseEntity() { return (ResponseEntity) get("responseEntity"); } public void set(String key, Object value) { if (value != null) put(key, value); else remove(key); } public void unset() { threadLocal.remove(); } } |
如何测试？
自己另外起一个server端口为9090如下所示
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 |
package com.rjzheng.eatservice; import org.springframework.boot.autoconfigure.SpringBootApplication; import org.springframework.boot.builder.SpringApplicationBuilder; import org.springframework.boot.web.servlet.ServletComponentScan; import com.rjzheng.eatservice.controller.IndexController; @SpringBootApplication @ServletComponentScan(basePackageClasses = IndexController.class) public class Application { public static void main(String[] args) { new SpringApplicationBuilder(Application.class).properties("server.port=9090").run(args); } } |
再来一个controller
1 2 3 4 5 6 7 8 9 10 11 12 13 |
package com.rjzheng.eatservice.controller; import org.springframework.web.bind.annotation.RequestMapping; import org.springframework.web.bind.annotation.RestController; @RestController public class IndexController { @RequestMapping("/index") public String index() { return "hello!world"; } } |
然后，你就发现可以从localhost:8080/index进行跳转访问了
3. 3 结论
本文模拟了一下zuul网关的源码，借鉴了一下其精髓的部分。希望大家能有所收获
