Creating a web service health check with Jenkins pipeline and Mattermost notification
In this post, a simple health checker for one microservice will be created using theJenkins pipeline.
Prerequisites:
- Mattermost Notification Plugin
- cURL or similar
- Jenkins

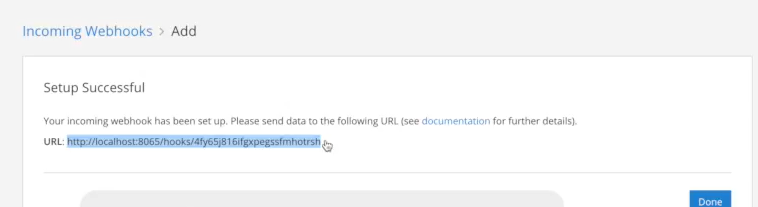

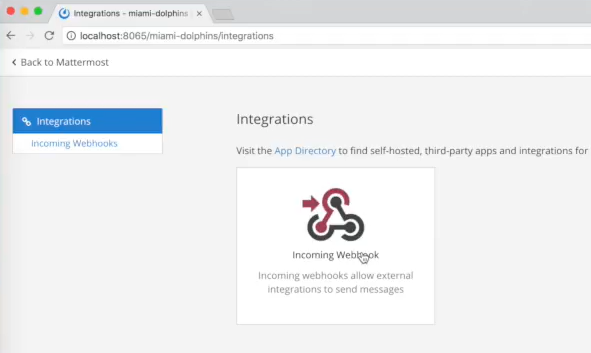

1. 1 Configure Mattermost Config
https://docs.mattermost.com/developer/webhooks-incoming.html
2. 2 Create Job
Create a new job with type “Pipeline” in Jenkins.

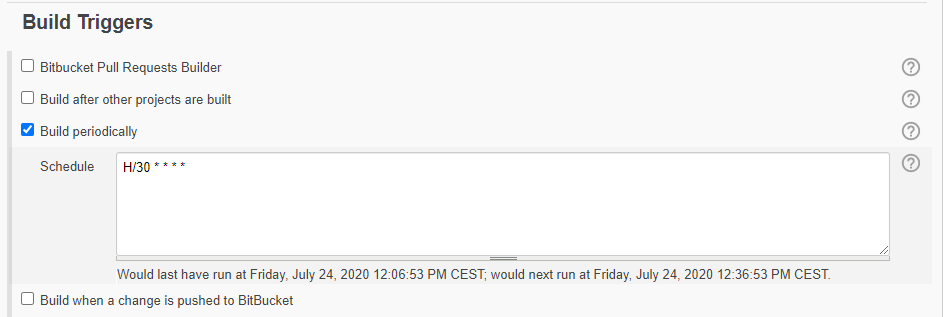

3. 3 Add Build Trigger
This job will be executed every 30 minutes.
4. 4 Add Pipeline script
This pipeline has 2 stages.
The 1st stage will connect to our keycloak server to get the access token, you can change it to any authentication server.
The second stage will use the access_token from the 1st stage and tries to call the web service.
If http response code is 200, the job will send a mattermost infor message; If code is not 200, the job wil send a mattermost warning message. And meanwhile, will send a warning email to the operation team.
The post action (failure ) will catch the stage failure, when it executes error function like this: error(“notify token retrieving error”)
5. Full script:
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 |
pipeline { agent any environment { stageName = "Service Name " ppcUrl = "https://test.com/api/servicename" keycloakUrl = "https://keycloak.test.com/auth/realms/realm_name/protocol/openid-connect/token" ACCESS_TOKEN = "" httpStatus = "" httpResponse = "" } stages { stage ('Get Service keycloak token') { steps { script { final def (String response, int code) = sh(script: "curl --insecure -s -w '\\n%{response_code}' \ --location --request POST $keycloakUrl \ --header 'Authorization: Basic d2ViX2FwcDp3ZWJfYXBw' \ --header 'Content-Type: application/x-www-form-urlencoded' \ --data-urlencode 'grant_type=password' \ --data-urlencode 'username=user' \ --data-urlencode 'password=passwprd' \ --data-urlencode 'scope=realm_nameprofile email' \ ", returnStdout: true) .trim() .tokenize("\n") echo "HTTP response status code: $code" if (code == 200) { def jsonObj = readJSON text: response ACCESS_TOKEN = jsonObj['access_token'] if (ACCESS_TOKEN == "") { httpStatus = "403" error("notify token retrieving error") } } } } } stage ('Check Service Health') { steps { script { httpStatus = sh(script: "curl --insecure -w '%{http_code}' $ppcUrl -o /dev/null \ --header 'Accept: application/json' \ --header 'Authorization: Bearer ${ACCESS_TOKEN}' \ ", returnStdout: true) if (httpStatus != "200" && httpStatus != "201" ) { echo "Service error with status code = ${httpStatus} when calling ${ppcUrl}" error("notify error") } else { echo "Service OK with status: ${httpStatus}" } } } } } // Finishing Up Actions post { success { script { notifySucc(stageName, httpStatus) } } failure { script { notifyError(stageName, httpStatus) } } unstable { mattermostSend channel: "#mattermost_channel_id", color: "warning", message: ":warning: $stageName health checking is aborted. | ${env.BUILD_NUMBER} (<${env.BUILD_URL}|Open>)" } fixed { mattermostSend channel: "#mattermost_channel_id", color: "good", message: ":white_check_mark: $stageName is returning to health. | ${env.BUILD_NUMBER} (<${env.BUILD_URL}|Open>)" } } } def notifySucc(String stageName = '', String httpStatus = '') { def message = ":smiley: $stageName is working. | ${env.BUILD_NUMBER} (<${env.BUILD_URL}|Open>)" echo(message) mattermostSend channel: "#mattermost_channel_id", color: "good", message: message } def notifyError(String stageName = '', String httpStatus = '') { def message if (httpStatus == "401") { message = ":sweat: $stageName unauthorized ($httpStatus), please update token and session. | ${env.BUILD_NUMBER} (<${env.BUILD_URL}|Open>)" } else if (httpStatus == "403") { message = ":dizzy_face: $stageName can not get token from Keycloak ($httpStatus), please update token and session. | ${env.BUILD_NUMBER} (<${env.BUILD_URL}|Open>)" } else{ message = ":rage: $stageName is down with status: $httpStatus | ${env.BUILD_NUMBER} (<${env.BUILD_URL}|Open>)" } echo(message) mattermostSend channel: "#mattermost_channel_id", color: "danger", message: message emailext ( subject: message, to: "youremail@test.com;someone@test.com;", body: """<p>$stageName Health Check Failed: '${env.JOB_NAME} [${env.BUILD_NUMBER}]':</p> <p>Check console output at "<a href='${env.BUILD_URL}'>${env.JOB_NAME} [${env.BUILD_NUMBER}]</a>"</p>""" //,recipientProviders: [[$class: 'DevelopersRecipientProvider']] ) } |
6. Last Result
Reference:
Creating a simple health check with Jenkins pipelines and Slack notification
https://www.jenkins.io/blog/2016/07/18/pipeline-notifications/
