How to config multiple web applications with virtual hosts in one Tomcat server

by leelight · Published November 7, 2018 · Updated November 8, 2018

1. Introduction

Sometimes we need to run multiple web applications with the corresponding virtual hosts in one Tomcat server. Actually, this is not simple to config and there is more than one solution. For example, you can install each web application in separated Tomcat servers.

2. Requirement

Assumed that you have:

Tomcat: /opt/tomcat-dev/
Apache 2: /etc/httpd/
Registered two sub-domains:
api.mobabel.net
manager.mobabel.net
The domains DNS has pointed to your server
And the main domain mobabel.net is available.
Two web applications
nova-api.war
nova-manager.war
CentOS or other Linux

3. Use Case

3-1. 1. Config single web application with a virtual host ( with port + context path)

We use web application nova-api as an example.

1. Copy nova-api.war into /opt/tomcat-dev/webapps

Start Tomcat and this application nova-api can be found in Tomcat Web Application Manager (http://www.mobabel.net:8080/manager/html/), check whether http://www.mobabel.net:8080/nova-api/ is working or not.

2. Edit /opt/tomcat-dev/conf/server.xml

 <Server>
      <Service>
          <Connector port="8080" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443"
               />

<Connector port="8080" protocol="HTTP/1.1"

connectionTimeout="20000"

redirectPort="8443"

Restart Tomcat server.

3. Active Port 8080 in the firewall

# firewall-cmd --zone=public --permanent --add-port=8080/tcp
# firewall-cmd --reload

1 2	# firewall-cmd --zone=public --permanent --add-port=8080/tcp # firewall-cmd --reload

On some servers from the server supplier, you need active special ports in their admin control panel.

4. Set the reverse proxy in Apache

Insert this virtual host declaration in /etc/httpd/conf/httpd.conf or other custom config file:

<VirtualHost *:80>
    ServerName api.mobabel.net

    ProxyRequests Off
    ProxyVia Off
    ProxyPreserveHost Off

    <Proxy *>
         Order Deny,Allow
         Allow from all
    </Proxy>

    ErrorLog logs/api.mobabel.net-error_log
    CustomLog logs/api.mobabel.net-access_log common

    ProxyPass /nova-api/ http://localhost:8080/nova-api/
    ProxyPassReverse /nova-api/ http://localhost:8080/nova-api/

</VirtualHost>

ServerName api.mobabel.net

ProxyRequests Off

ProxyVia Off

ProxyPreserveHost Off

Order Deny,Allow

Allow from all

</Proxy>

ErrorLog logs/api.mobabel.net-error_log

CustomLog logs/api.mobabel.net-access_log common

ProxyPass /nova-api/ http://localhost:8080/nova-api/

ProxyPassReverse /nova-api/ http://localhost:8080/nova-api/

</VirtualHost>

Restart Apache server.

5. Test http://api.mobabel.net:8080/nova-api/

It should work.

Conclusion

This solution is fit for Continuous Integration CI, because Jenkins can deploy war into Tomcat server via Tomcat txt manager remotely.

But this web URL has port 8080 and context path /nova-api/. This is inconvenient for users.

I will go further to remove the port and context path

3-2. 2. Config single web application with a virtual host ( without port + context path)

1. Keep the previous settings.

2. Edit /opt/tomcat-dev/conf/server.xml

Please make sure you are using same host name “localhost“(or your custom host name) in Connector, Engine and Host node.

 <Server>
      <Service>
          <Connector port="8080" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443"

               address="localhost"
               proxyName="api.mobabel.net"
               proxyPort="80"
               scheme="http"
               />
         <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
         ......

         <Engine name="Catalina" defaultHost="localhost">
          ......
             <Host name="localhost"  appBase="webapps" unpackWARs="true" autoDeploy="true">
                <Context path="" docBase="/opt/tomcat-dev/webapps/nova-api" reloadable="false" useHttpOnly="true">
		  <Manager pathname=""/>
                 </Context>
              <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
                 prefix="api.mobabel.net_access_log" suffix=".txt"
                  pattern="%h %l %u %t &quot;%r&quot; %s %b" />
             </Host>
......

<Connector port="8080" protocol="HTTP/1.1"

connectionTimeout="20000"

redirectPort="8443"

address="localhost"

proxyName="api.mobabel.net"

proxyPort="80"

scheme="http"

......

......

</Context>

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"

prefix="api.mobabel.net_access_log" suffix=".txt"

pattern="%h %l %u %t "%r" %s %b" />

</Host>

......

Restart Tomcat server.

3. Set the reverse proxy in Apache

Edit this virtual host declaration in /etc/httpd/conf/httpd.conf or other custom config file:

<VirtualHost *:80>
    ServerName api.mobabel.net

    ProxyRequests Off
    ProxyVia Off
    ProxyPreserveHost Off

    <Proxy *>
         Order Deny,Allow
         Allow from all
    </Proxy>

    ErrorLog logs/api.mobabel.net-error_log
    CustomLog logs/api.mobabel.net-access_log common

    ProxyPass / http://localhost:8080/
    ProxyPassReverse / http://localhost:8080/

</VirtualHost>

ServerName api.mobabel.net

ProxyRequests Off

ProxyVia Off

ProxyPreserveHost Off

Order Deny,Allow

Allow from all

</Proxy>

ErrorLog logs/api.mobabel.net-error_log

CustomLog logs/api.mobabel.net-access_log common

ProxyPass / http://localhost:8080/

ProxyPassReverse / http://localhost:8080/

</VirtualHost>

Restart Apache server.

4. Test http://api.mobabel.net/ The boring port and context path is gone!

Conclusion

This solution is fit for Continuous Integration CI, because Jenkins can deploy war into Tomcat server via Tomcat txt manager remotely.

But this solution will make your Tomcat only work for one web application with the domain.

3-3. 3. Config multiple web applications with the virtual hosts ( without port + context path)

1. Keep the previous settings for nova-api

2. create a new webapps container for nova-manager and grant permission. Assume that your tomcat-dev is running under group tomcat and with owner tomcat-dev.

mkdir /opt/tomcat-dev/webapps-manager

chown -hR tomcat-dev:tomcat /opt/tomcat-dev/webapps-manager

mkdir /opt/tomcat-dev/webapps-manager

chown -hR tomcat-dev:tomcat /opt/tomcat-dev/webapps-manager

3. Copy nova-manager.war into /opt/tomcat-dev/webapps-manager/

4. Edit /opt/tomcat-dev/conf/server.xml

Please make sure you are using same host name “localhost“(or your custom host name) in Connector, Engine and Host node.

 <Server>
      <Service>
          <Connector port="8080" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443"

               address="localhost"
               proxyName="api.mobabel.net"
               proxyPort="80"
               scheme="http"
               />
         <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
         ......

         <Engine name="Catalina" defaultHost="localhost">
          ......
             <Host name="localhost"  appBase="webapps" unpackWARs="true" autoDeploy="true">
                <Context path="" docBase="/opt/tomcat-dev/webapps/nova-api" reloadable="false" useHttpOnly="true">
		  <Manager pathname=""/>
                 </Context>
                <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
                 prefix="api.mobabel.net_access_log" suffix=".txt"
                 pattern="%h %l %u %t &quot;%r&quot; %s %b" />
             </Host>
      ......
      </Service>

<!--- seperate Service for nova-manager application -->
<Service name="DevNovaManager">

    <Connector port="8083" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8444"

	       address="localhost"
               proxyName="manager.mobabel.net"
               proxyPort="80"
               scheme="http"
               />

    <Connector port="8013" protocol="AJP/1.3" redirectPort="8444" />

    <Engine name="DevNovaManager" defaultHost="localhost">

      <Host name="localhost"  appBase="webapps-manager" unpackWARs="true" autoDeploy="true">

		<Context path="" docBase="/opt/tomcat-dev/webapps-manager/nova-manager" reloadable="false" useHttpOnly="true">
			<Manager pathname=""/>
                </Context>

        <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
               prefix="manager.mobabel.net_access_log" suffix=".txt"
               pattern="%h %l %u %t &quot;%r&quot; %s %b" />

      </Host>
    </Engine>
  </Service>

</Server>

<Connector port="8080" protocol="HTTP/1.1"

connectionTimeout="20000"

redirectPort="8443"

address="localhost"

proxyName="api.mobabel.net"

proxyPort="80"

scheme="http"

......

......

</Context>

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"

prefix="api.mobabel.net_access_log" suffix=".txt"

pattern="%h %l %u %t "%r" %s %b" />

</Host>

......

</Service>

<Connector port="8083" protocol="HTTP/1.1"

connectionTimeout="20000"

redirectPort="8444"

address="localhost"

proxyName="manager.mobabel.net"

proxyPort="80"

scheme="http"

</Context>

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"

prefix="manager.mobabel.net_access_log" suffix=".txt"

pattern="%h %l %u %t "%r" %s %b" />

</Host>

</Engine>

</Service>

</Server>

Please use different port “8013” for connector AJP and “8444” for redirectPort. Otherwise, you could not start Tomcat server because of the port conflict.

Restart Tomcat server.

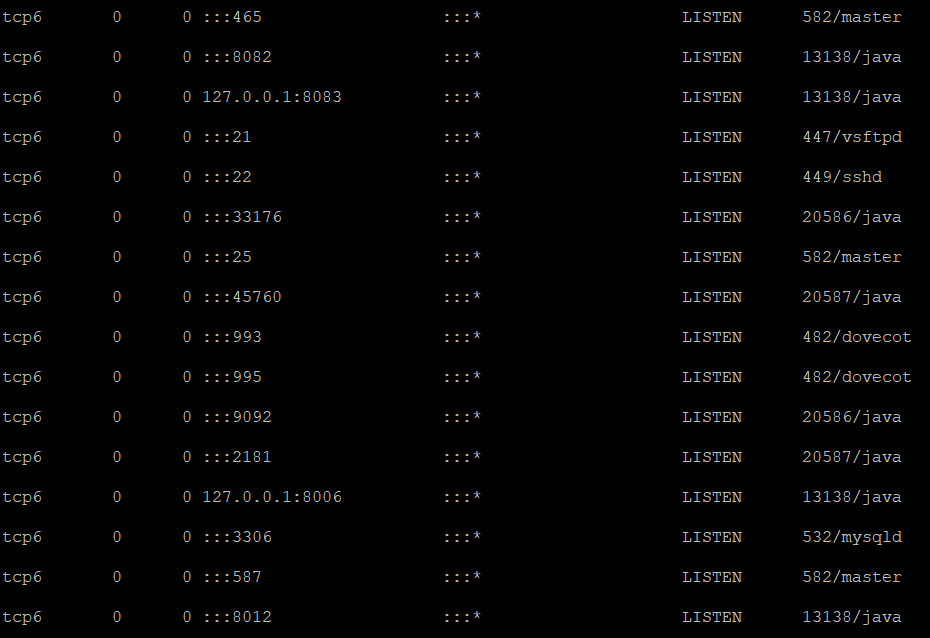

You can use netstat command to check the port usage.

netstat -plntu

1	netstat -plntu

5. Set the reverse proxy in Apache

Add this virtual host declaration in /etc/httpd/conf/httpd.conf or other custom config file:

<VirtualHost *:80>
    ServerName manager.mobabel.net

    ProxyRequests Off
    ProxyVia Off
    ProxyPreserveHost Off

    <Proxy *>
         Order Deny,Allow
         Allow from all
    </Proxy>

    ErrorLog logs/manager.mobabel.net-error_log
    CustomLog logs/manager.mobabel.net-access_log common

    ProxyPass / http://localhost:8083/
    ProxyPassReverse / http://localhost:8083/

</VirtualHost>

ServerName manager.mobabel.net

ProxyRequests Off

ProxyVia Off

ProxyPreserveHost Off

Order Deny,Allow

Allow from all

</Proxy>

ErrorLog logs/manager.mobabel.net-error_log

CustomLog logs/manager.mobabel.net-access_log common

ProxyPass / http://localhost:8083/

ProxyPassReverse / http://localhost:8083/

</VirtualHost>

Restart Apache server.

6. Test http://api.mobabel.net/ and http://manager.mobabel.net/

Conclusion

~~Jenkins can not deploy war into Tomcat server via Tomcat txt manager directly. But Jenkins can use FTP protocol to upload war remotely.~~

3-4. 4. Add another application in case 3

You can repeat step 1 to 5 to add one new web application, for example: nova-other

In step 2 a new webapps-other is created, and nova-other.war is copied into /opt/tomcat-dev/webapps-other/. It seems correct and everything works fine.

3-4-1. BUT

When nova-other.war is moved to /opt/tomcat-dev/webapps, everything still works fine!!!

That means multiple web applications with different port and virtual domain can be put into one webapps directory!

This is the last modified server.xml

<Server>
      <Service>
          <Connector port="8080" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8443"

               address="localhost"
               proxyName="api.mobabel.net"
               proxyPort="80"
               scheme="http"
               />
         <Connector port="8009" protocol="AJP/1.3" redirectPort="8443" />
         ......

         <Engine name="Catalina" defaultHost="localhost">
          ......
             <Host name="localhost"  appBase="webapps" unpackWARs="true" autoDeploy="true">
                <Context path="" docBase="/opt/tomcat-dev/webapps/nova-api" reloadable="false" useHttpOnly="true">
		  <Manager pathname=""/>
                 </Context>
                <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
                 prefix="api.mobabel.net_access_log" suffix=".txt"
                 pattern="%h %l %u %t &quot;%r&quot; %s %b" />
             </Host>
      ......
      </Service>

<!--- seperate Service for nova-manager application -->
<Service name="DevNovaManager">

    <Connector port="8083" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8444"

	       address="localhost"
               proxyName="manager.mobabel.net"
               proxyPort="80"
               scheme="http"
               />

    <Connector port="8013" protocol="AJP/1.3" redirectPort="8444" />

    <Engine name="DevNovaManager" defaultHost="localhost">

      <Host name="localhost"  appBase="webapps" unpackWARs="true" autoDeploy="true">

		<Context path="" docBase="/opt/tomcat-dev/webapps/nova-manager" reloadable="false" useHttpOnly="true">
			<Manager pathname=""/>
                </Context>

        <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
               prefix="manager.mobabel.net_access_log" suffix=".txt"
               pattern="%h %l %u %t &quot;%r&quot; %s %b" />

      </Host>
    </Engine>
  </Service>

<!--- seperate Service for nova-other application -->
<Service name="DevNovaOther">

    <Connector port="8084" protocol="HTTP/1.1"
               connectionTimeout="20000"
               redirectPort="8445"

	       address="localhost"
               proxyName="other.mobabel.net"
               proxyPort="80"
               scheme="http"
               />

    <Connector port="8014" protocol="AJP/1.3" redirectPort="8445" />

    <Engine name="DevNovaOther" defaultHost="localhost">

      <Host name="localhost"  appBase="webapps" unpackWARs="true" autoDeploy="true">

		<Context path="" docBase="/opt/tomcat-dev/webapps/nova-other" reloadable="false" useHttpOnly="true">
			<Manager pathname=""/>
                </Context>

        <Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"
               prefix="other.mobabel.net_access_log" suffix=".txt"
               pattern="%h %l %u %t &quot;%r&quot; %s %b" />

      </Host>
    </Engine>
  </Service>


</Server>

<Connector port="8080" protocol="HTTP/1.1"

connectionTimeout="20000"

redirectPort="8443"

address="localhost"

proxyName="api.mobabel.net"

proxyPort="80"

scheme="http"

......

......

</Context>

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"

prefix="api.mobabel.net_access_log" suffix=".txt"

pattern="%h %l %u %t "%r" %s %b" />

</Host>

......

</Service>

<Connector port="8083" protocol="HTTP/1.1"

connectionTimeout="20000"

redirectPort="8444"

address="localhost"

proxyName="manager.mobabel.net"

proxyPort="80"

scheme="http"

</Context>

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"

prefix="manager.mobabel.net_access_log" suffix=".txt"

pattern="%h %l %u %t "%r" %s %b" />

</Host>

</Engine>

</Service>

<Connector port="8084" protocol="HTTP/1.1"

connectionTimeout="20000"

redirectPort="8445"

address="localhost"

proxyName="other.mobabel.net"

proxyPort="80"

scheme="http"

</Context>

<Valve className="org.apache.catalina.valves.AccessLogValve" directory="logs"

prefix="other.mobabel.net_access_log" suffix=".txt"

pattern="%h %l %u %t "%r" %s %b" />

</Host>

</Engine>

</Service>

</Server>

Conclusion

You can still use separate appBase in Host depends on your request. But Jenkins can deploy war into Tomcat server via Tomcat txt manager directly if all web applications are in appBase webapps.

Further Test

Copy Tomcat’s application manager from /opt/tomcat-dev/webapps/manager to /opt/tomcat-dev/webapps-manager/manager, and give a free port and virtual host(newmanager.mobabel.net) to it.

And do not forget put Realm inside Engine.

http://newmanager.mobabel.net/manager/html works!! Jenkins can deploy war to the custom webapps directory now!

3-5. 5. Config multiple web applications with the virtual hosts in multiple instances in Single Tomcat server

https://dzone.com/articles/run-configure-multiple-instance-in-a-single-tomcat

Not yet tested.

3-6. Refer:

[转]详解Tomcat 配置文件server.xml

https://www.tecmint.com/run-deploy-multiple-web-applications-instances-tomcat-centos-ubuntu/

https://dzone.com/articles/run-configure-multiple-instance-in-a-single-tomcat

Tags: Tomcat

Cookie	Duration	Description
cookielawinfo-checkbox-analytics	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Analytics".
cookielawinfo-checkbox-functional	11 months	The cookie is set by GDPR cookie consent to record the user consent for the cookies in the category "Functional".
cookielawinfo-checkbox-necessary	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookies is used to store the user consent for the cookies in the category "Necessary".
cookielawinfo-checkbox-others	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Other.
cookielawinfo-checkbox-performance	11 months	This cookie is set by GDPR Cookie Consent plugin. The cookie is used to store the user consent for the cookies in the category "Performance".
viewed_cookie_policy	11 months	The cookie is set by the GDPR Cookie Consent plugin and is used to store whether or not user has consented to the use of cookies. It does not store any personal data.

How to config multiple web applications with virtual hosts in one Tomcat server

You may also like...

Leave a Reply Cancel reply

Meta

Categories

How to config multiple web applications with virtual hosts in one Tomcat server

1. Introduction

2. Requirement

3. Use Case

3-1. 1. Config single web application with a virtual host ( with port + context path)

3-2. 2. Config single web application with a virtual host ( without port + context path)

3-3. 3. Config multiple web applications with the virtual hosts ( without port + context path)

3-4. 4. Add another application in case 3

3-4-1. BUT

3-5. 5. Config multiple web applications with the virtual hosts in multiple instances in Single Tomcat server

3-6. Refer:

You may also like...

[转]详解Tomcat 配置文件server.xml

[转]生产环境下到底该如何部署Tomcat？

[转]Tomcat 性能调优之 JVM 调优

Leave a Reply Cancel reply

Meta

Categories
